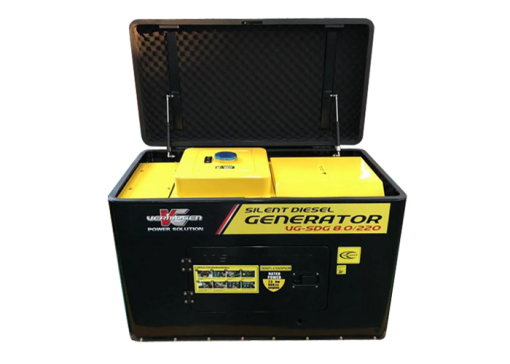

Silent Diesel Generator VG-SDG8.0/220
Spesifikasi
- Rated Frequency ( Hz ) : 50
- Rated Voltage ( V ) : 220/230
- Rated Output Power ( KW ) : 7.5
- Max Output Power ( KW ) : 8.0
- Rated Rotation Speed ( rpm ) : 3000
- Power Factor ( cosФ ) : 1.0 or 0.8
- Phase Number : Single Phase
- Noise Level ( db(A)@7m ) : 72-74
- Excitation Mode : Brush (AVR)
- Engine Model : VG1100F
- Engine Type : Single Cylinder, 4-stroke, Direct Injection, Air-Cooled, Diesel Engine
- Displacement ( ml ) : 668
- Compression Ratio : 19:1
- Rated Output Power ( KW/rpm ) : 9.6/3000
- Starting System : Clockwise
- Rotation direction ( viewed from flywheel ) : Clockwise
- Fuel : 0#(summer) – 10#(winter) – 20#(chillness) diesel
- Lube : CD grade or SAE 10W-30, 15W-40
- Low oil pressure alert system : With
- Overail dimension ( LxWxH ) ( mm ) : 1150x650x870
- Dry Weight ( kg ) : 230/245 Kg
Description
Features
- Low Noise at 72-74 dBA at 7m.
- Minimal vibration & smooth running.
- Function better with double large muffler.
- Fahion soundproof canopy.
- 8 hours continuous running free fuels plus.
- Universal wheels make movement easily.
- AVR give stable voltage & safe work.
