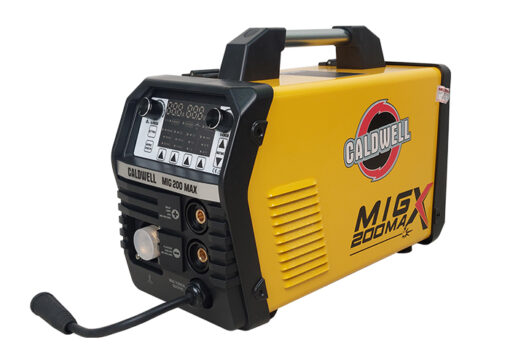

INVERTER MIG 200 MAX

INVERTER MIG 200 MAX

Spesifikasi

  • Input Voltage (V) : AC220V ± 15%
  • Frequency (Hz) : 50/60
  • Rated Input Current (A) : 4.1
  • Output Current Range (A) : 30-200
  • Output Voltage Adjustment (V) : 10-30
  • Wire feeding speed (m/min) : 2-15
  • Duty Cycle (%) : 40
  • Type of Wire feeder : Built-in
  • Efficiency (%) : ≥85
  • Power Factor : 0.73
  • Insulation Grade : F
  • Housing Protection Grade : IP21S
  • Net Weight (kg) : 9.9
  • Dimension (mm) : 400*190*300
Categories: , ,

Description

1. Made in the IGBT inverter technology
2. High efficiency and energy savings
3. Continiuous adjustment function of the welding current and voltage with a sufficient wide adjustment range
4. Small splashing , great penetration , easy and simple to operate and aesthetic appearance of weld seem
5. Easy to start the arc , stable arc and little spatter
6. Adopt IGBT modul Technology
7. Soft Switching technology brings higher efficiency and more stable performance
8. Multi function : MIG/MAG, ARC/MMA
