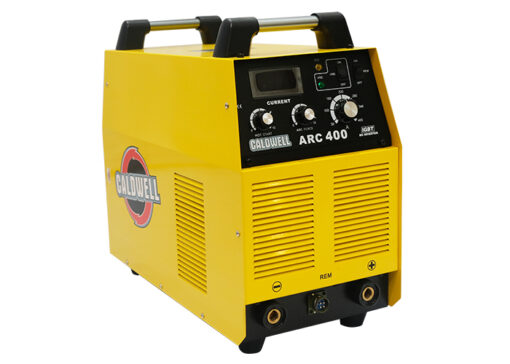

INVERTER ARC 400 G

INVERTER ARC 400 G

Spesifikasi

  • Input Voltage (V) : AC 380 V ± 15%
  • Frequency (Hz) : 50/60
  • Rated Input Current (A) : 27.7
  • No-Load Voltage (V) : 66
  • Output Current Range (A) : 30-400
  • Rated Output Voltage (V) : 36
  • Duty Cycle (%) : 100
  • No-Load Loss (W) : 80
  • Efficiency (%) : 85
  • Power Factor : 0.93
  • Insulation Grade : F
  • Housing Protection Grade : IP21
  • Net Weight (kg) : 30
  • Dimension (mm) : 580*340*500
Categories: , ,

Description

1. Made in the IGBT inverter technology
2. Start arc easily , stable welding arc , deep weld pool and beautiful welding shape
3. VRD function , hot start ignition function with present hot arc current from 0-135A
4. Arc force adjustment control with a range from 0-100A
5. Light, small, high efficiency and less noises
6. Built in protection circuit & malfunction display function , reliable and convinient to trouble shooting
